Name: GPA040A120L-ND
Brand: SemiQ
SKU: GPA040A120L-ND
Availability: InStock

REF: GPA040A120L-ND SemiQ

GPA040A120L-ND

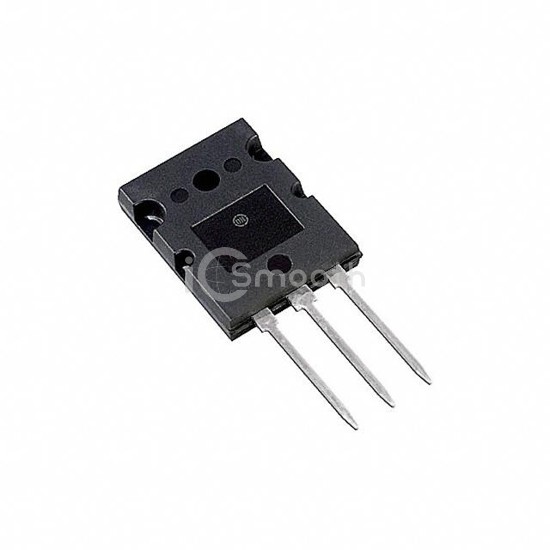

IGBT 1200V 80A 455W TO264

GPA040A120L-ND is a Transistors - IGBTs - Single manufactured by SemiQ. IGBT 1200V 80A 455W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 4,898

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT and Trench
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 40A
Power - Max	455 W
Switching Energy	5.8mJ (on), 1.5mJ (off)
Input Type	Standard

Gate Charge	510 nC
Td (on/off) @ 25°C	41ns/200ns
Test Condition	600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)	220 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264
