Name: GPA040A120L-FD
Brand: SemiQ
SKU: GPA040A120L-FD
Availability: InStock

REF: GPA040A120L-FD SemiQ

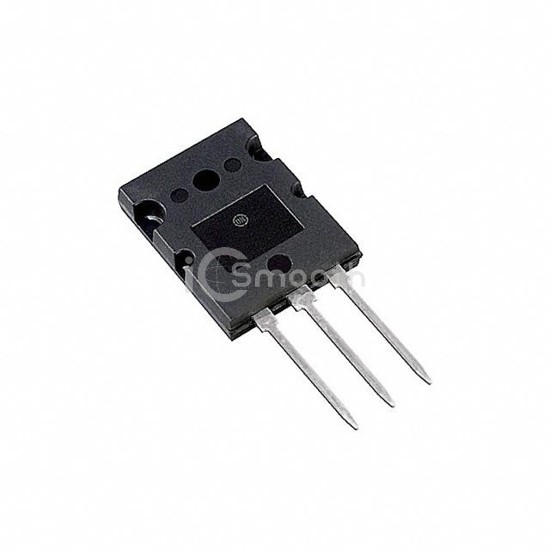

GPA040A120L-FD

IGBT 1200V 80A 480W TO264

GPA040A120L-FD is a Transistors - IGBTs - Single manufactured by SemiQ. IGBT 1200V 80A 480W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 8,880

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 40A
Power - Max	480 W
Switching Energy	5.3mJ (on), 1.1mJ (off)
Input Type	Standard

Gate Charge	480 nC
Td (on/off) @ 25°C	55ns/200ns
Test Condition	600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)	200 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264
