Name: GPA030A120I-FD
Brand: SemiQ
SKU: GPA030A120I-FD
Availability: InStock

REF: GPA030A120I-FD SemiQ

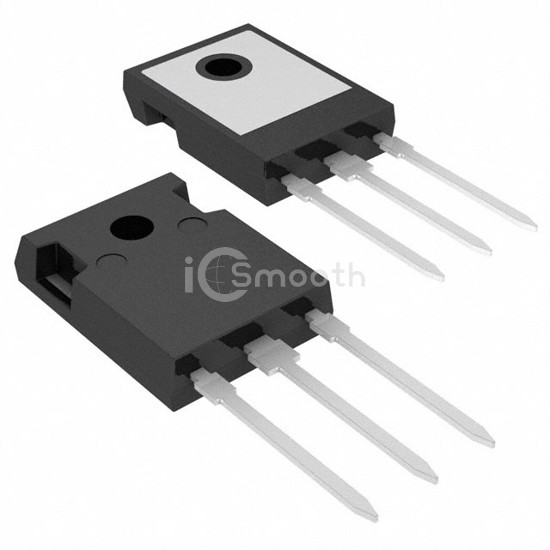

GPA030A120I-FD

IGBT 1200V 60A 329W TO247

GPA030A120I-FD is a Transistors - IGBTs - Single manufactured by SemiQ. IGBT 1200V 60A 329W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 5,712

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	90 A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 30A
Power - Max	329 W
Switching Energy	4.5mJ (on), 850µJ (off)
Input Type	Standard

Gate Charge	330 nC
Td (on/off) @ 25°C	40ns/245ns
Test Condition	600V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)	450 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
