Name: MC9S08SH4MFK
Brand: Freescale Semiconductor
SKU: MC9S08SH4MFK
Price: 1.31 USD
Availability: InStock

REF: MC9S08SH4MFK Freescale Semiconductor

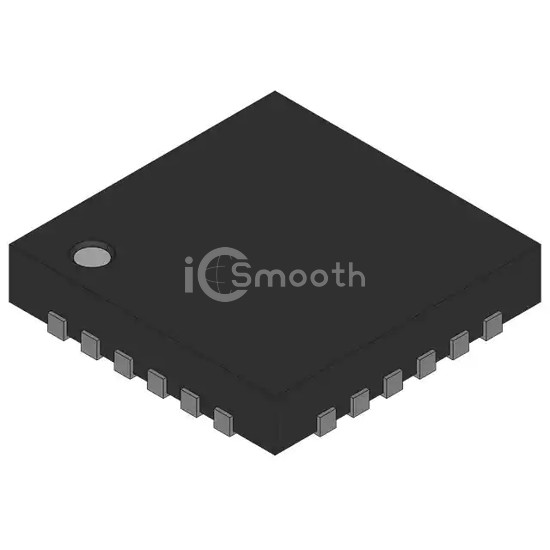

MC9S08SH4MFK

Freescale Semiconductor

IC MCU 8BIT 4KB FLASH 24QFN

MC9S08SH4MFK is a Embedded - Microcontrollers manufactured by Freescale Semiconductor. IC MCU 8BIT 4KB FLASH 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 24-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 480

Specifications

18 parameters

Product Status	Obsolete
Core Processor	S08
Core Size	8-Bit
Speed	40MHz
Connectivity	I²C, LINbus, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Number of I/O	17
Program Memory Size	4KB (4K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Data Converters	A/D 12x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-QFN-EP (4x4)
