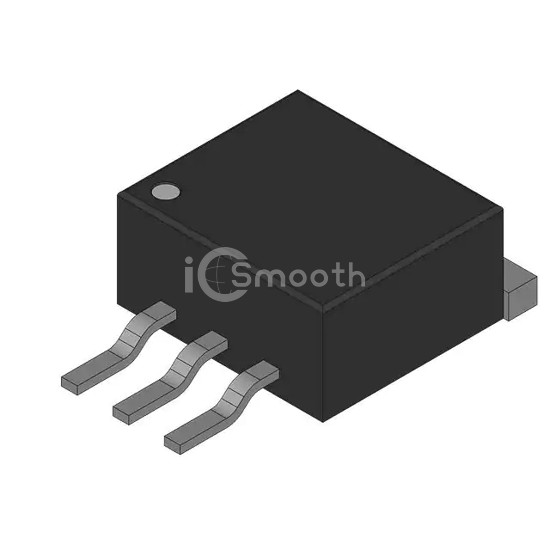

Name: SGW23N60UFDTM
Brand: Fairchild Semiconductor
SKU: SGW23N60UFDTM
Price: 0.83 USD
Availability: InStock

REF: SGW23N60UFDTM Fairchild Semiconductor

SGW23N60UFDTM

Fairchild Semiconductor

N-CHANNEL IGBT

SGW23N60UFDTM is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 23 A.

Datasheet Request a Quote

In Stock: 50,127

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	23 A
Current - Collector Pulsed (Icm)	92 A
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 12A
Power - Max	100 W
Switching Energy	115µJ (on), 135µJ (off)
Input Type	Standard

Gate Charge	49 nC
Td (on/off) @ 25°C	17ns/60ns
Test Condition	300V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr)	60 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK (TO-263)
