Name: SGS23N60UFDTU
Brand: Fairchild Semiconductor
SKU: SGS23N60UFDTU
Availability: InStock

REF: SGS23N60UFDTU Fairchild Semiconductor

SGS23N60UFDTU

IGBT, 23A I(C), 600V V(BR)CES, N

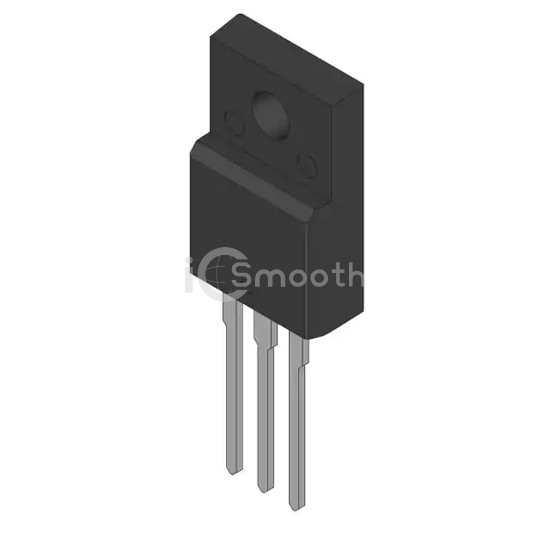

SGS23N60UFDTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. IGBT, 23A I(C), 600V V(BR)CES, N. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 23 A.

Request a Quote

In Stock: 1,087

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	23 A
Current - Collector Pulsed (Icm)	92 A
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 12A
Power - Max	73 W
Switching Energy	115µJ (on), 135µJ (off)
Input Type	Standard

Gate Charge	49 nC
Td (on/off) @ 25°C	17ns/60ns
Test Condition	300V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr)	60 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220F
