SGS10N60RUFDTU

In Stock: 86,597
SGS10N60RUFDTU - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: SGS10N60RUFDTU Fairchild Semiconductor
SGS10N60RUFDTU

Fairchild Semiconductor

INSULATED GATE BIPOLAR TRANSISTO

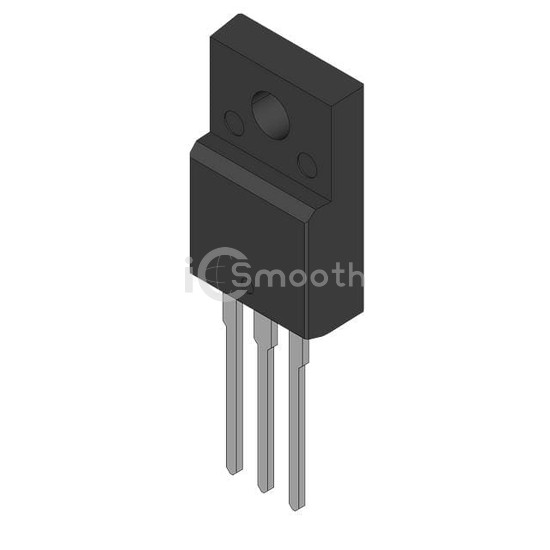

SGS10N60RUFDTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 16 A.

Datasheet Request a Quote

In Stock: 86,597

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)16 A
Current - Collector Pulsed (Icm)30 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 10A
Power - Max55 W
Switching Energy141µJ (on), 215µJ (off)
Input TypeStandard
Gate Charge30 nC
Td (on/off) @ 25°C15ns/36ns
Test Condition300V, 10A, 20Ohm, 15V
Reverse Recovery Time (trr)60 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F-3
