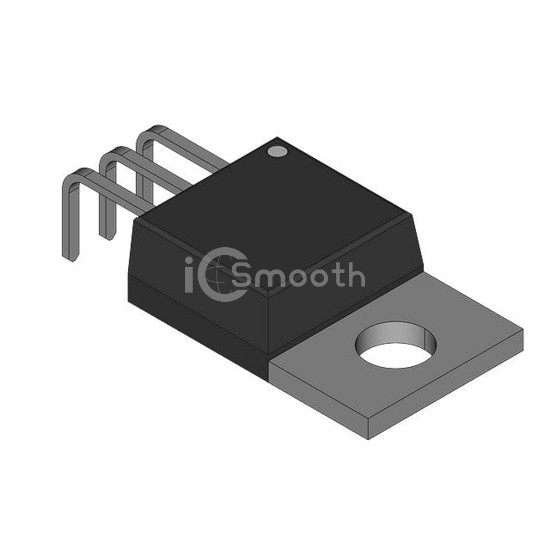

SGP6N60UFDTU - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: SGP6N60UFDTU Fairchild Semiconductor
SGP6N60UFDTU

Fairchild Semiconductor

N-CHANNEL IGBT

SGP6N60UFDTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 6 A.

Datasheet Request a Quote

In Stock: 869

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)6 A
Current - Collector Pulsed (Icm)25 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 3A
Power - Max30 W
Switching Energy57µJ (on), 25µJ (off)
Input TypeStandard
Gate Charge15 nC
Td (on/off) @ 25°C15ns/60ns
Test Condition300V, 3A, 80Ohm, 15V
Reverse Recovery Time (trr)52 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
