SGP5N60RUFDTU - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: SGP5N60RUFDTU Fairchild Semiconductor
SGP5N60RUFDTU

Fairchild Semiconductor

N-CHANNEL IGBT

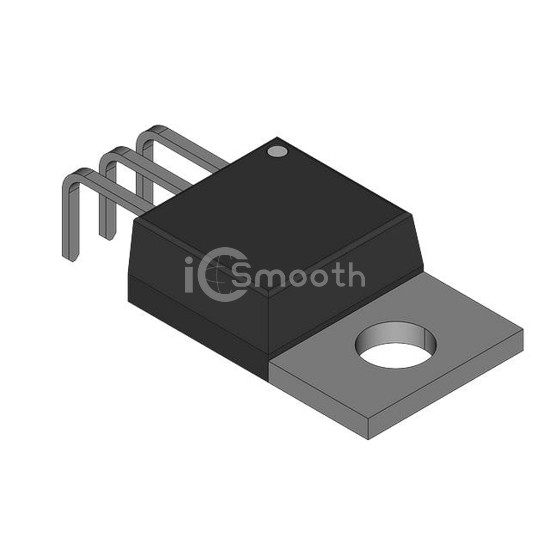

SGP5N60RUFDTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 8 A.

Datasheet Request a Quote

In Stock: 6,374

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)8 A
Current - Collector Pulsed (Icm)15 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 5A
Power - Max60 W
Switching Energy88µJ (on), 107µJ (off)
Input TypeStandard
Gate Charge16 nC
Td (on/off) @ 25°C13ns/34ns
Test Condition300V, 5A, 40Ohm, 15V
Reverse Recovery Time (trr)55 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
