SGP15N60RUFTU

In Stock: 1,377

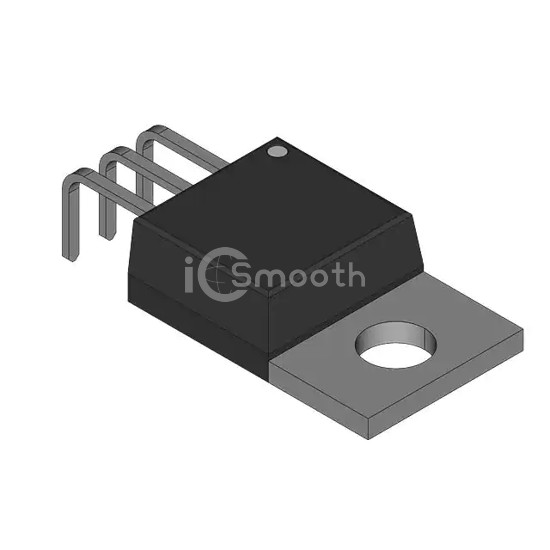

SGP15N60RUFTU - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: SGP15N60RUFTU Fairchild Semiconductor
SGP15N60RUFTU

Fairchild Semiconductor

N-CHANNEL IGBT

SGP15N60RUFTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 24 A.

Datasheet Request a Quote

In Stock: 1,377

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)24 A
Current - Collector Pulsed (Icm)45 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 15A
Power - Max160 W
Switching Energy320µJ (on), 356µJ (off)
Input TypeStandard
Gate Charge42 nC
Td (on/off) @ 25°C17ns/44ns
Test Condition300V, 15A, 13Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
