SGP13N60UFTU

In Stock: 5,514

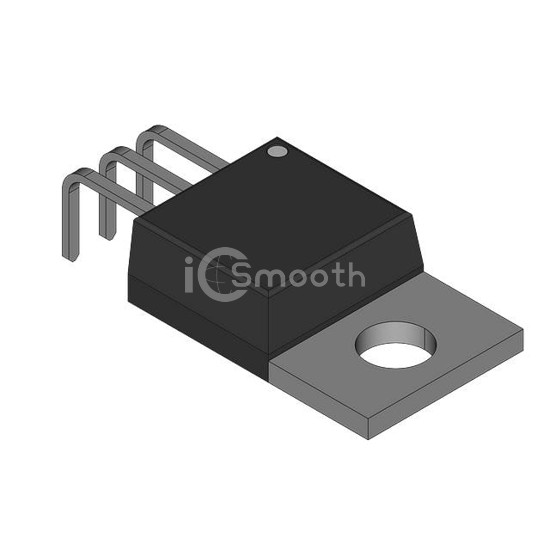

SGP13N60UFTU - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: SGP13N60UFTU Fairchild Semiconductor
SGP13N60UFTU

Fairchild Semiconductor

N-CHANNEL IGBT

SGP13N60UFTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 13 A.

Datasheet Request a Quote

In Stock: 5,514

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)13 A
Current - Collector Pulsed (Icm)52 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 6.5A
Power - Max60 W
Switching Energy85µJ (on), 95µJ (off)
Input TypeStandard
Gate Charge25 nC
Td (on/off) @ 25°C20ns/70ns
Test Condition300V, 6.5A, 50Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
