SGF23N60UFTU

In Stock: 154,800

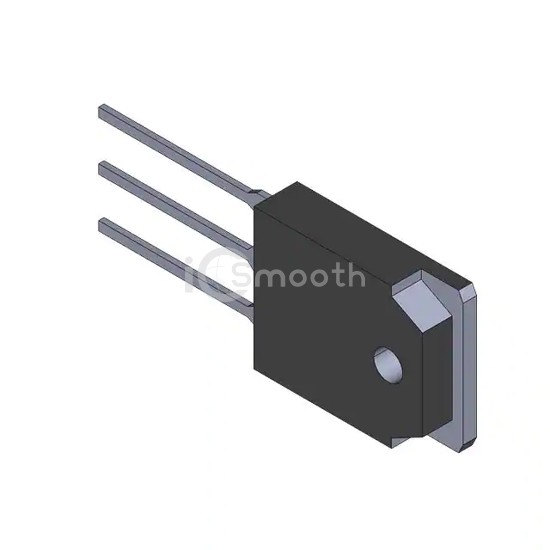

SGF23N60UFTU - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: SGF23N60UFTU Fairchild Semiconductor
SGF23N60UFTU

Fairchild Semiconductor

INSULATED GATE BIPOLAR TRANSISTO

SGF23N60UFTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 23 A.

Datasheet Request a Quote

In Stock: 154,800

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)92 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 12A
Power - Max75 W
Switching Energy115µJ (on), 135µJ (off)
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C17ns/60ns
Test Condition300V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
