Name: NCV8501PDW80R2G
Brand: Fairchild Semiconductor
SKU: NCV8501PDW80R2G
Price: 0.90 USD
Availability: InStock

REF: NCV8501PDW80R2G Fairchild Semiconductor

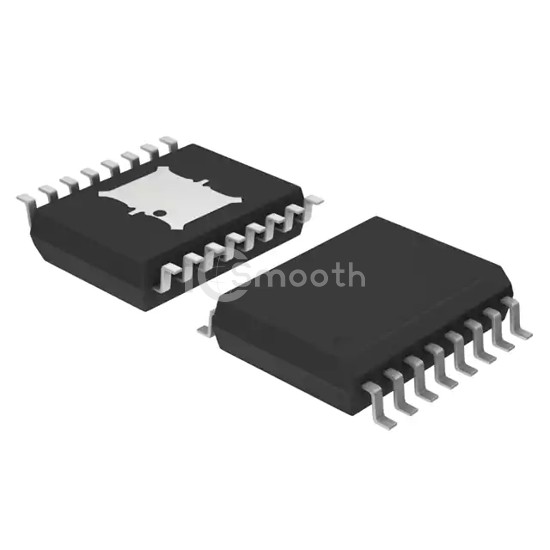

NCV8501PDW80R2G

Fairchild Semiconductor

IC REG LINEAR 8V 150MA 16SOIC

NCV8501PDW80R2G is a PMIC - Voltage Regulators - Linear manufactured by Fairchild Semiconductor. IC REG LINEAR 8V 150MA 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 19 mA.

Datasheet Request a Quote

In Stock: 1,000

Tiered Pricing USD

1,000+ $0.8984 —

2,000+ $0.8326 -7%

3,000+ $0.8125 -10% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	19 mA
PSRR	-
Control Features	Enable, Reset
Protection Features	Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package	16-SOIC
