NC7WZ32L8X

In Stock: 627,344

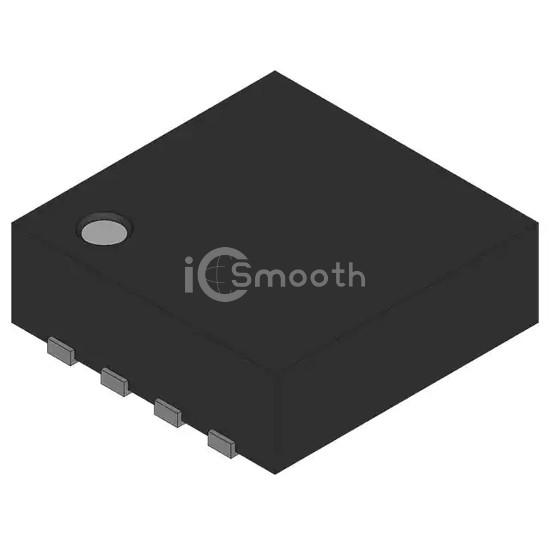

NC7WZ32L8X - Fairchild Semiconductor - Logic - Gates and Inverters
REF: NC7WZ32L8X Fairchild Semiconductor
NC7WZ32L8X

Fairchild Semiconductor

IC GATE OR 2CH 2-INP 8MICROPAK

NC7WZ32L8X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC GATE OR 2CH 2-INP 8MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-UFQFN.

Datasheet Request a Quote

In Stock: 627,344

Specifications

15 parameters
Product StatusActive
Logic TypeOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.7ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package8-MicroPak™
Package / Case8-UFQFN
