NC7WZ14P6

In Stock: 7,567

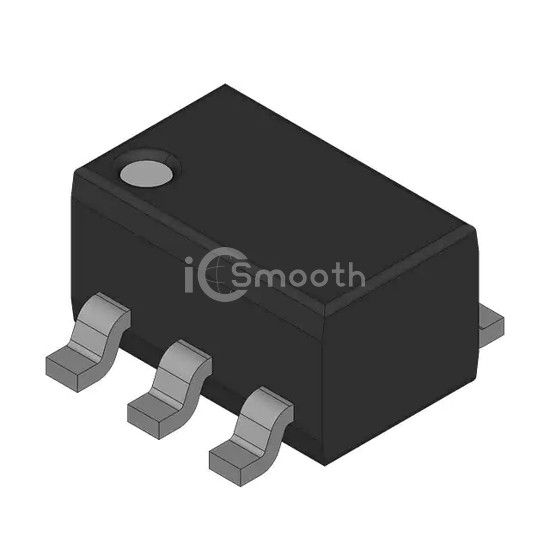

NC7WZ14P6 - Fairchild Semiconductor - Logic - Gates and Inverters
REF: NC7WZ14P6 Fairchild Semiconductor
NC7WZ14P6

Fairchild Semiconductor

IC INVERT SCHMITT 2CH 2-INP SC88

NC7WZ14P6 is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC INVERT SCHMITT 2CH 2-INP SC88. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 5.5V, package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 7,567

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits2
Number of Inputs2
FeaturesSchmitt Trigger Input
Voltage - Supply1.8V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.9V ~ 2.3V
Logic Level - High1.5V ~ 3.6V
Max Propagation Delay @ V, Max CL4.9ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageSC-88 (SC-70-6)
Package / Case6-TSSOP, SC-88, SOT-363
