NC7WZ04P6

In Stock: 4,513

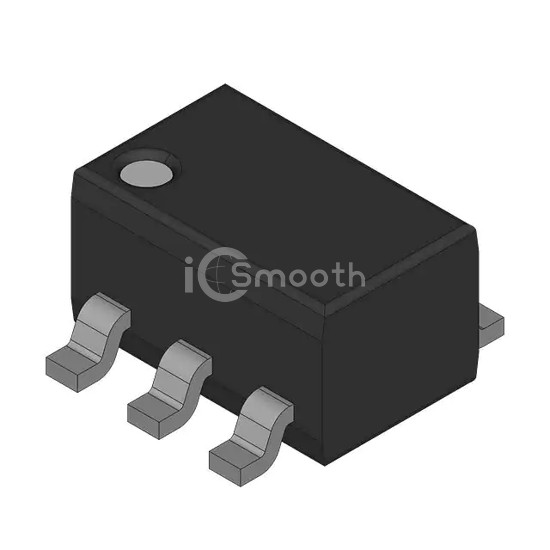

NC7WZ04P6 - Fairchild Semiconductor - Logic - Gates and Inverters
REF: NC7WZ04P6 Fairchild Semiconductor
NC7WZ04P6

Fairchild Semiconductor

INVERTER, LVC/LCX/Z SERIES, 2 FU

NC7WZ04P6 is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. INVERTER, LVC/LCX/Z SERIES, 2 FU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 4,513

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.6ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageSC-88 (SC-70-6)
Package / Case6-TSSOP, SC-88, SOT-363
