NC7WZ00L8X

In Stock: 464,158

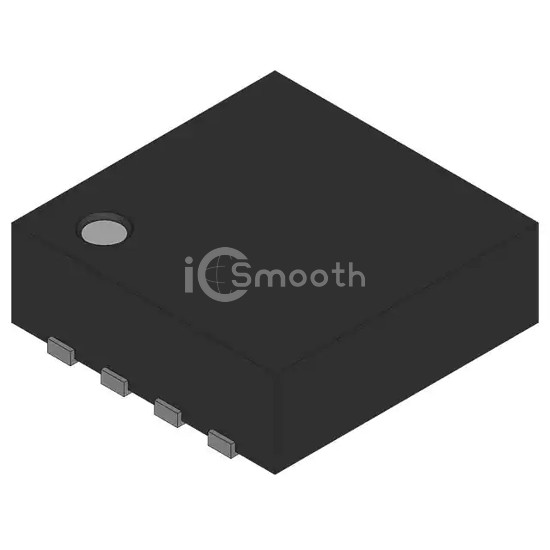

NC7WZ00L8X - Fairchild Semiconductor - Logic - Gates and Inverters
REF: NC7WZ00L8X Fairchild Semiconductor
NC7WZ00L8X

Fairchild Semiconductor

IC GATE NAND 2CH 2-INP 8MICROPAK

NC7WZ00L8X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC GATE NAND 2CH 2-INP 8MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-UFQFN.

Datasheet Request a Quote

In Stock: 464,158

Tiered Pricing USD
1+ $0.3100 —
10+ $0.2170 -30%
25+ $0.1924 -38%
100+ $0.1655 -47%
250+ $0.1527 -51%
500+ $0.1450 -53%
1,000+ $0.1386 -55%
2,500+ $0.1368 -56% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL3.6ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package8-MicroPak™
Package / Case8-UFQFN
