NC7WP02K8X

In Stock: 51,163

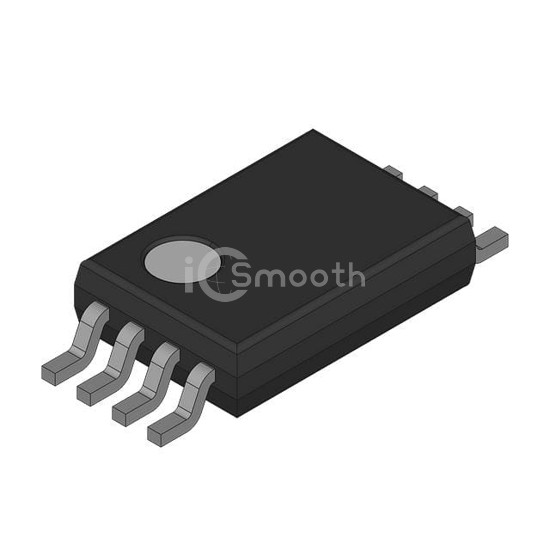

NC7WP02K8X - Fairchild Semiconductor - Logic - Gates and Inverters
REF: NC7WP02K8X Fairchild Semiconductor
NC7WP02K8X

Fairchild Semiconductor

NOR GATE, P SERIES, 2-FUNC, 2-IN

NC7WP02K8X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NOR GATE, P SERIES, 2-FUNC, 2-IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.9V ~ 3.6V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 51,163

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits2
Number of Inputs2
Features-
Voltage - Supply0.9V ~ 3.6V
Current - Quiescent (Max)900 nA
Current - Output High, Low2.6mA, 2.6mA
Logic Level - Low0.7V ~ 0.9V
Logic Level - High1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL7ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device PackageUS8
Package / Case8-VFSOP (0.091", 2.30mm Width)
