NC7NP04L8X

In Stock: 9,032

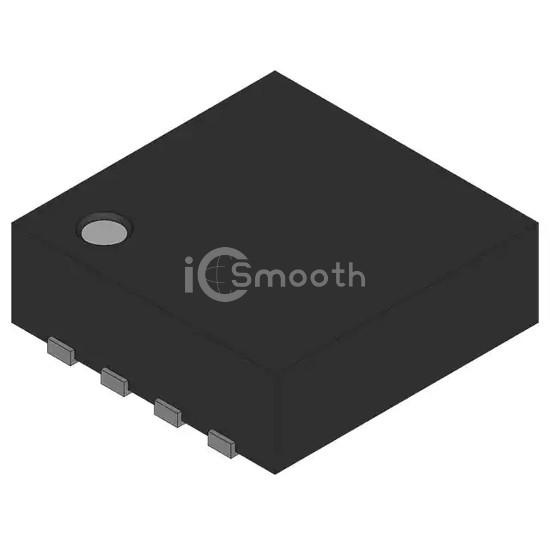

NC7NP04L8X - Fairchild Semiconductor - Logic - Gates and Inverters
REF: NC7NP04L8X Fairchild Semiconductor
NC7NP04L8X

Fairchild Semiconductor

IC INVERTER 3CH 3-INP 8MICROPAK

NC7NP04L8X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC INVERTER 3CH 3-INP 8MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.9V ~ 3.6V, package / case 8-UFQFN.

Datasheet Request a Quote

In Stock: 9,032

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits3
Number of Inputs3
Features-
Voltage - Supply0.9V ~ 3.6V
Current - Quiescent (Max)900 nA
Current - Output High, Low2.6mA, 2.6mA
Logic Level - Low0.7V ~ 0.9V
Logic Level - High1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL9.2ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package8-MicroPak™
Package / Case8-UFQFN
