HMHA2801R1

In Stock: 3,561

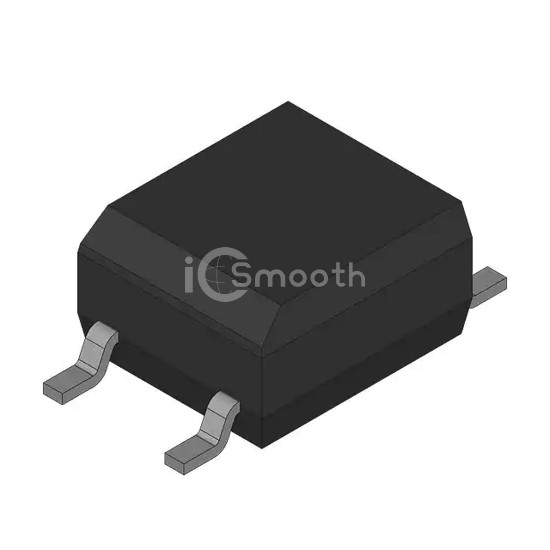

HMHA2801R1 - Fairchild Semiconductor - Optoisolators - Transistor, Photovoltaic Output
REF: HMHA2801R1 Fairchild Semiconductor
HMHA2801R1

Fairchild Semiconductor

TRANSISTOR OUTPUT OPTOCOUPLER

HMHA2801R1 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.3V (Max), package / case 4-SOIC (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 3,561

Tiered Pricing USD
1,000+ $0.2111 —
2,000+ $0.1964 -7%
3,000+ $0.1891 -10%
5,000+ $0.1810 -14%
7,000+ $0.1763 -17%
10,000+ $0.1717 -19%
25,000+ $0.1620 -23%
50,000+ $0.1562 -26% BEST

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)80% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.3V (Max)
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.173", 4.40mm Width)
Supplier Device Package4-Mini-Flat
