Name: HMAA2705R2
Brand: Fairchild Semiconductor
SKU: HMAA2705R2
Price: 0.20 USD
Availability: InStock

REF: HMAA2705R2 Fairchild Semiconductor

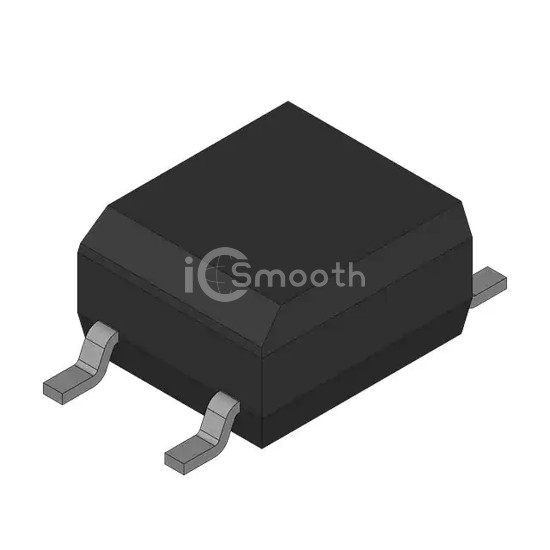

HMAA2705R2

Fairchild Semiconductor

AC IN-DARLINGTON OUT OPTOCOUPLER

HMAA2705R2 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. AC IN-DARLINGTON OUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.3V (Max), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,376

Tiered Pricing USD

2,500+ $0.2048 —

5,000+ $0.1930 -6%

7,500+ $0.1871 -9%

12,500+ $0.1806 -12%

17,500+ $0.1768 -14%

25,000+ $0.1732 -15% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	40V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.3V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
