HGTP5N120CN

In Stock: 8,902
HGTP5N120CN - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: HGTP5N120CN Fairchild Semiconductor
HGTP5N120CN

Fairchild Semiconductor

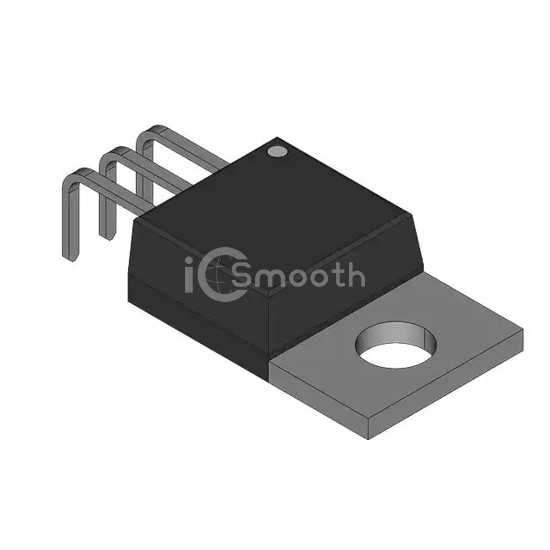

IGBT, 25A, 1200V, N-CHANNEL

HGTP5N120CN is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. IGBT, 25A, 1200V, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 8,902

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 5.5A
Power - Max167 W
Switching Energy400µJ (on), 640µJ (off)
Input TypeStandard
Gate Charge75 nC
Td (on/off) @ 25°C22ns/180ns
Test Condition960V, 5.5A, 25Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
