HGTP12N60A4

In Stock: 449
HGTP12N60A4 - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: HGTP12N60A4 Fairchild Semiconductor

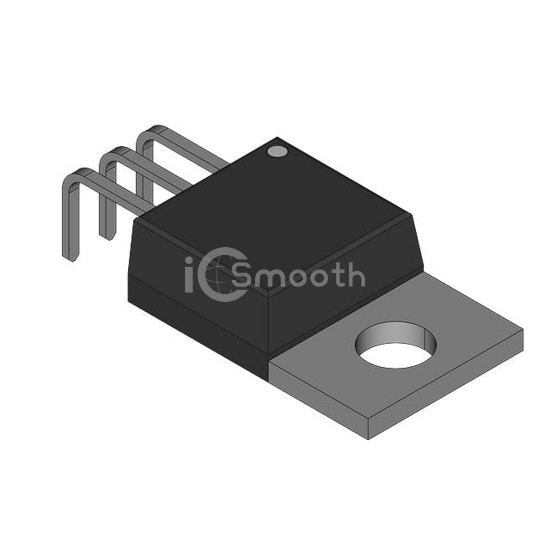

HGTP12N60A4

Fairchild Semiconductor

UFS SERIES N-CH IGBT

HGTP12N60A4 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. UFS SERIES N-CH IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 54 A.

Datasheet Request a Quote

In Stock: 449

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)54 A
Current - Collector Pulsed (Icm)96 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 12A
Power - Max167 W
Switching Energy55µJ (on), 50µJ (off)
Input TypeStandard
Gate Charge78 nC
Td (on/off) @ 25°C17ns/96ns
Test Condition390V, 12A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
