HGTG12N60A4

In Stock: 6,942
HGTG12N60A4 - Fairchild Semiconductor - Transistors - IGBTs - Single
REF: HGTG12N60A4 Fairchild Semiconductor
HGTG12N60A4

Fairchild Semiconductor

N-CHANNEL IGBT

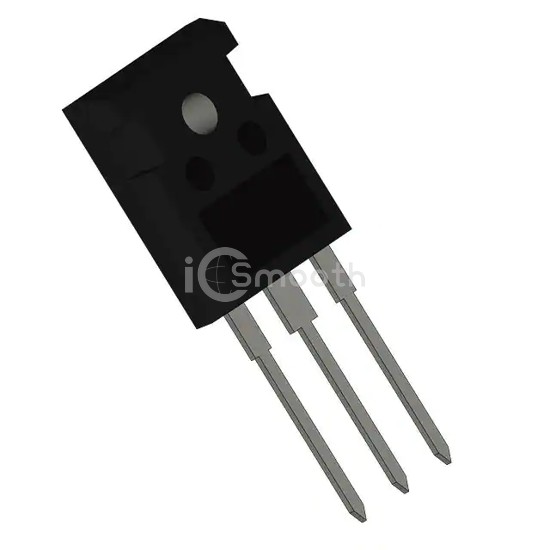

HGTG12N60A4 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 54 A.

Datasheet Request a Quote

In Stock: 6,942

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)54 A
Current - Collector Pulsed (Icm)96 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 12A
Power - Max167 W
Switching Energy55µJ (on), 50µJ (off)
Input TypeStandard
Gate Charge78 nC
Td (on/off) @ 25°C17ns/96ns
Test Condition390V, 12A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
