Name: HGT1S10N120BNS
Brand: Fairchild Semiconductor
SKU: HGT1S10N120BNS
Availability: InStock

REF: HGT1S10N120BNS Fairchild Semiconductor

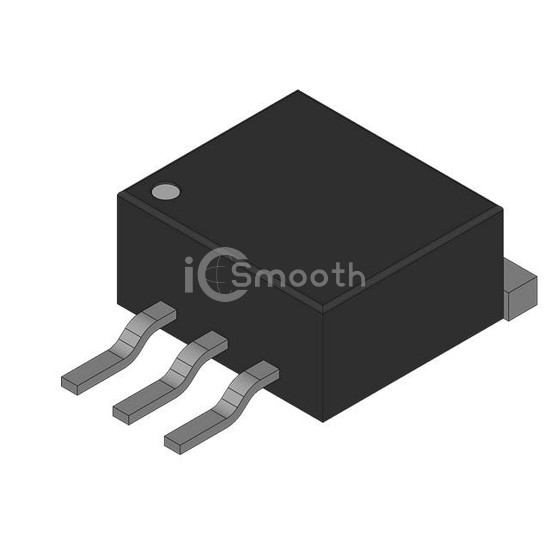

HGT1S10N120BNS

IGBT, 35A, 1200V, N-CHANNEL, TO-

HGT1S10N120BNS is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. IGBT, 35A, 1200V, N-CHANNEL, TO-. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 35 A.

Datasheet Request a Quote

In Stock: 7,455

Specifications

17 parameters

Product Status	Active
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	35 A
Current - Collector Pulsed (Icm)	80 A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 10A
Power - Max	298 W
Switching Energy	320µJ (on), 800µJ (off)
Input Type	Standard

Gate Charge	100 nC
Td (on/off) @ 25°C	23ns/165ns
Test Condition	960V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263AB
