HCPL4502V

In Stock: 773

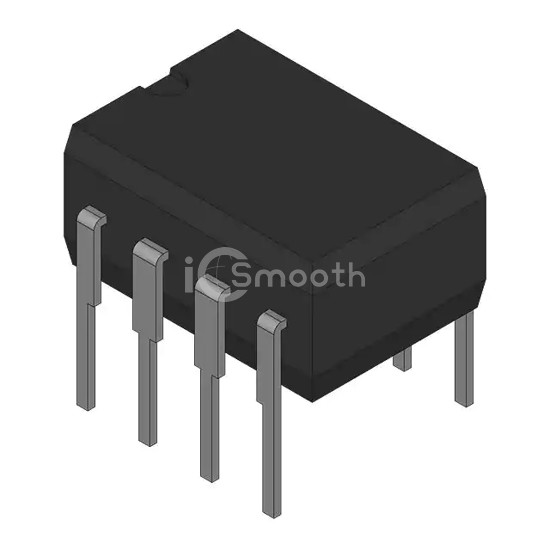

HCPL4502V - Fairchild Semiconductor - Optoisolators - Transistor, Photovoltaic Output
REF: HCPL4502V Fairchild Semiconductor
HCPL4502V

Fairchild Semiconductor

LOGIC IC OUTPUT OPTOCOUPLER

HCPL4502V is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. LOGIC IC OUTPUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 773

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)19% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)450ns, 300ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
