HCPL0501R2V

In Stock: 1,265
HCPL0501R2V - Fairchild Semiconductor - Optoisolators - Transistor, Photovoltaic Output
REF: HCPL0501R2V Fairchild Semiconductor
HCPL0501R2V

Fairchild Semiconductor

SINGLE-CHANNEL HIGH SPEED TRANSI

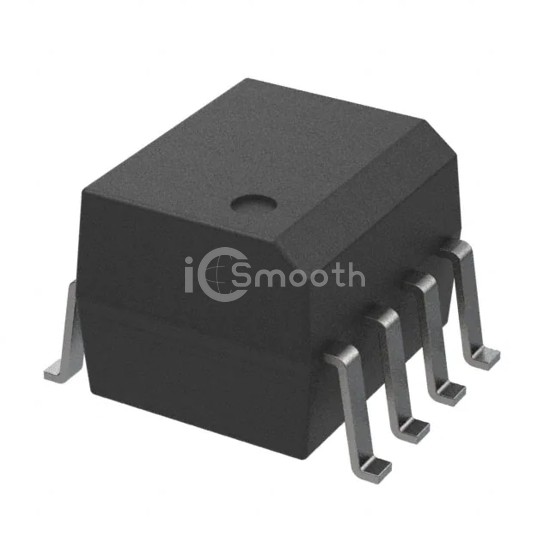

HCPL0501R2V is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. SINGLE-CHANNEL HIGH SPEED TRANSI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,265

Tiered Pricing USD
1+ $1.4800 —
10+ $1.0520 -29%
100+ $0.7913 -47%
500+ $0.6758 -54%
1,000+ $0.6381 -57% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)19% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)450ns, 300ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
