H11D1300

In Stock: 6,523

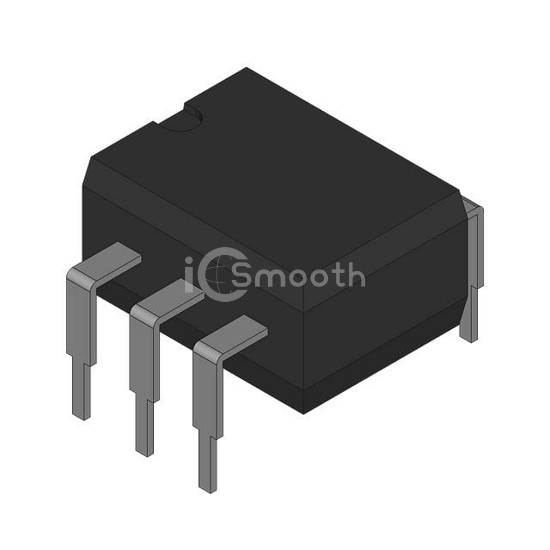

H11D1300 - Fairchild Semiconductor - Optoisolators - Transistor, Photovoltaic Output
REF: H11D1300 Fairchild Semiconductor
H11D1300

Fairchild Semiconductor

TRANSISTOR OUTPUT OPTOCOUPLER

H11D1300 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,523

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 5µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)300V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
