H11AG3

In Stock: 27,864

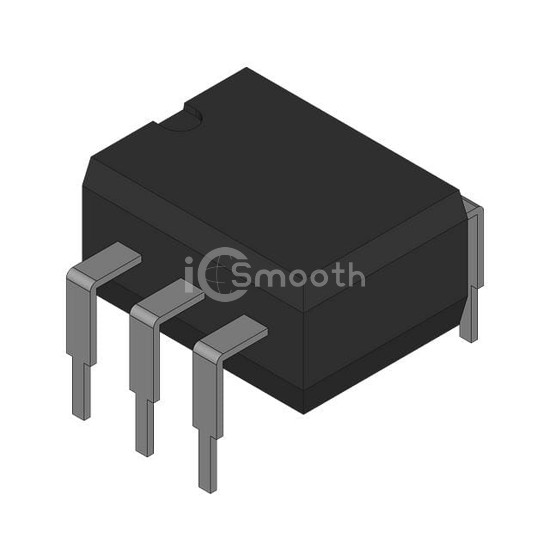

H11AG3 - Fairchild Semiconductor - Optoisolators - Transistor, Photovoltaic Output
REF: H11AG3 Fairchild Semiconductor
H11AG3

Fairchild Semiconductor

TRANSISTOR OUTPUT OPTOCOUPLER

H11AG3 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.5V (Max), package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 27,864

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)20% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 5µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)30V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.5V (Max)
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
