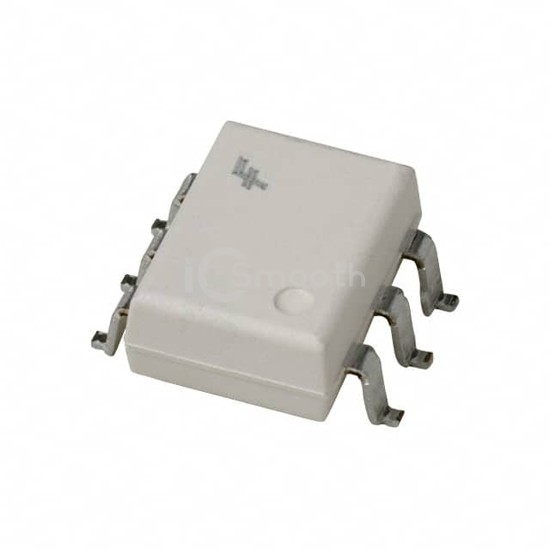

Name: H11AG1SM
Brand: Fairchild Semiconductor
SKU: H11AG1SM
Price: 1.03 USD
Availability: InStock

REF: H11AG1SM Fairchild Semiconductor

H11AG1SM

TRANSISTOR OUTPUT OPTOCOUPLER, 7

H11AG1SM is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER, 7. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,282

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 5µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
