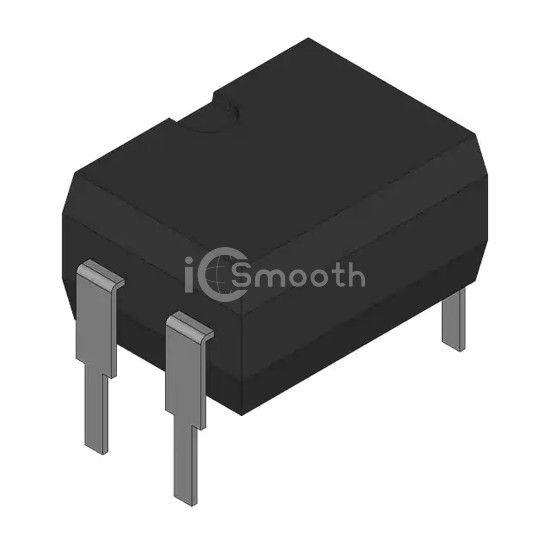

Name: H11AA814W
Brand: Fairchild Semiconductor
SKU: H11AA814W
Availability: InStock

REF: H11AA814W Fairchild Semiconductor

H11AA814W

AC IN-DARLINGTON OUT OPTOCOUPLER

H11AA814W is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. AC IN-DARLINGTON OUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 3,706

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	2.4µs, 2.4µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
