Name: H11A617AW
Brand: Fairchild Semiconductor
SKU: H11A617AW
Availability: InStock

REF: H11A617AW Fairchild Semiconductor

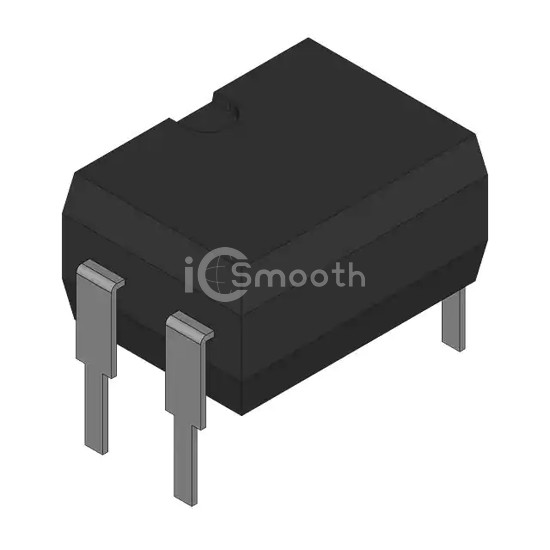

H11A617AW

TRANSISTOR OUTPUT OPTOCOUPLER

H11A617AW is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.35V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 7,293

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	40% @ 10mA
Current Transfer Ratio (Max)	80% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	2.4µs, 2.4µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.35V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
