FSFR1600

In Stock: 3,082

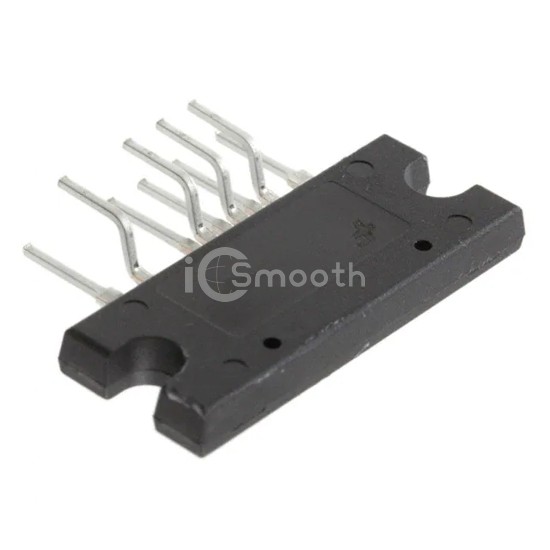

FSFR1600 - Fairchild Semiconductor - PMIC - AC DC Converters, Offline Switchers
REF: FSFR1600 Fairchild Semiconductor
FSFR1600

Fairchild Semiconductor

IC OFFLINE SW HALF-BRIDGE 9SIP

FSFR1600 is a PMIC - AC DC Converters, Offline Switchers manufactured by Fairchild Semiconductor. IC OFFLINE SW HALF-BRIDGE 9SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C (TJ), voltage - supply (vcc/vdd) 11.3V ~ 25V, package / case 10-SSIP Module, 9 Leads, Formed Leads.

Datasheet Request a Quote

In Stock: 3,082

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown500V
TopologyHalf-Bridge
Voltage - Start Up14.5 V
Voltage - Supply (Vcc/Vdd)11.3V ~ 25V
Duty Cycle50%
Frequency - SwitchingUp to 300kHz
Power (Watts)160 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control FeaturesEN, Frequency Control
Operating Temperature-40°C ~ 130°C (TJ)
Package / Case10-SSIP Module, 9 Leads, Formed Leads
Supplier Device Package9-SIP
Mounting TypeThrough Hole
