FS6X1220RD

In Stock: 8,750

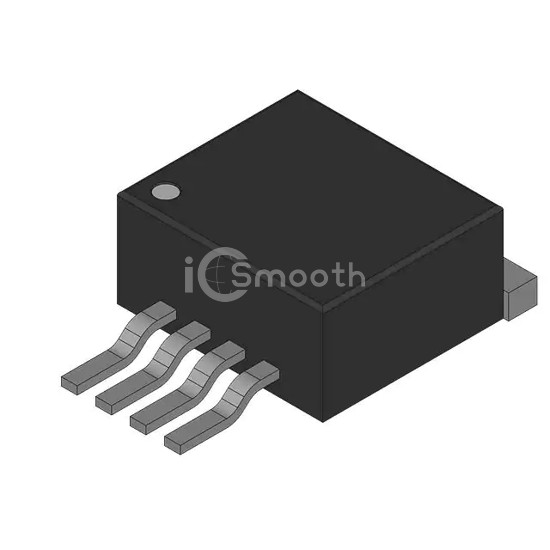

FS6X1220RD - Fairchild Semiconductor - PMIC - AC DC Converters, Offline Switchers
REF: FS6X1220RD Fairchild Semiconductor
FS6X1220RD

Fairchild Semiconductor

IC OFFLINE SW MULT TOP D2PAK-5

FS6X1220RD is a PMIC - AC DC Converters, Offline Switchers manufactured by Fairchild Semiconductor. IC OFFLINE SW MULT TOP D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 9V ~ 35V, package / case TO-252-6, DPak (5 Leads + Tab).

Datasheet Request a Quote

In Stock: 8,750

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown200V
TopologyFlyback, Forward
Voltage - Start Up15 V
Voltage - Supply (Vcc/Vdd)9V ~ 35V
Duty Cycle80%
Frequency - Switching300kHz
Power (Watts)40 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control Features-
Operating Temperature-25°C ~ 85°C (TA)
Package / CaseTO-252-6, DPak (5 Leads + Tab)
Supplier Device PackageD2PAK-5
Mounting TypeSurface Mount
