FS6X0420RJX

In Stock: 6,946

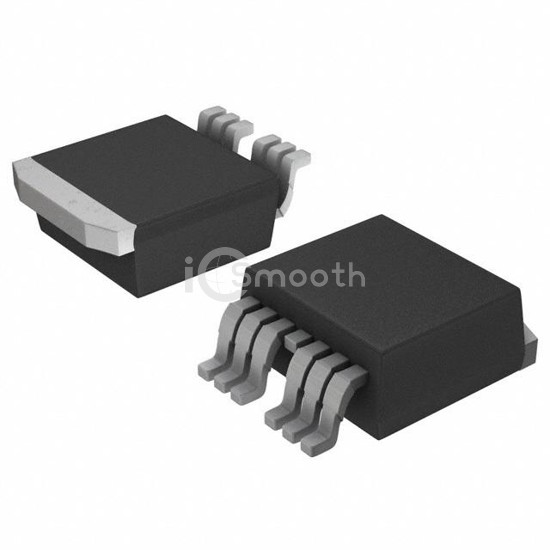

FS6X0420RJX - Fairchild Semiconductor - PMIC - AC DC Converters, Offline Switchers
REF: FS6X0420RJX Fairchild Semiconductor
FS6X0420RJX

Fairchild Semiconductor

IC OFFLINE SW MULT TOP D2PAK-6

FS6X0420RJX is a PMIC - AC DC Converters, Offline Switchers manufactured by Fairchild Semiconductor. IC OFFLINE SW MULT TOP D2PAK-6. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 9V ~ 35V, package / case TO-263-7, D²Pak (6 Leads + Tab), TO-263CB.

Datasheet Request a Quote

In Stock: 6,946

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown200V
TopologyFlyback, Forward
Voltage - Start Up15 V
Voltage - Supply (Vcc/Vdd)9V ~ 35V
Duty Cycle80%
Frequency - Switching300kHz
Power (Watts)14 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control Features-
Operating Temperature-25°C ~ 85°C (TA)
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Supplier Device PackageD²PAK-6
Mounting TypeSurface Mount
