FP7G100US60

In Stock: 3,236

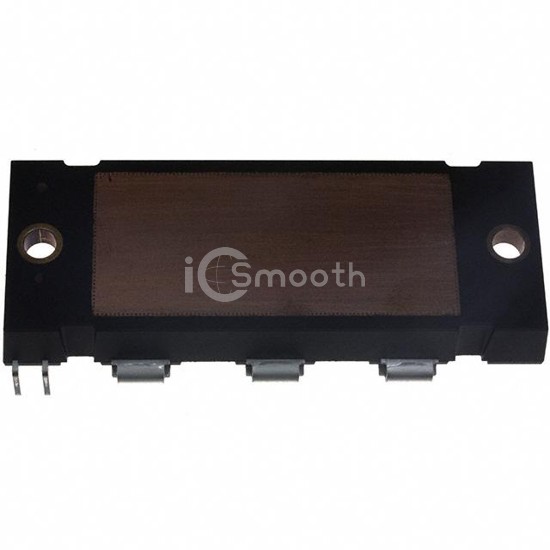

FP7G100US60 - Fairchild Semiconductor - Transistors - IGBTs - Modules
REF: FP7G100US60 Fairchild Semiconductor
FP7G100US60

Fairchild Semiconductor

IGBT, 100A, 600V, N-CHANNEL

FP7G100US60 is a Transistors - IGBTs - Modules manufactured by Fairchild Semiconductor. IGBT, 100A, 600V, N-CHANNEL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case EPM7, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 3,236

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)100 A
Power - Max400 W
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce6.085 nF @ 30 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseEPM7
Supplier Device PackageEPM7
