FODM3053R1

In Stock: 16,726

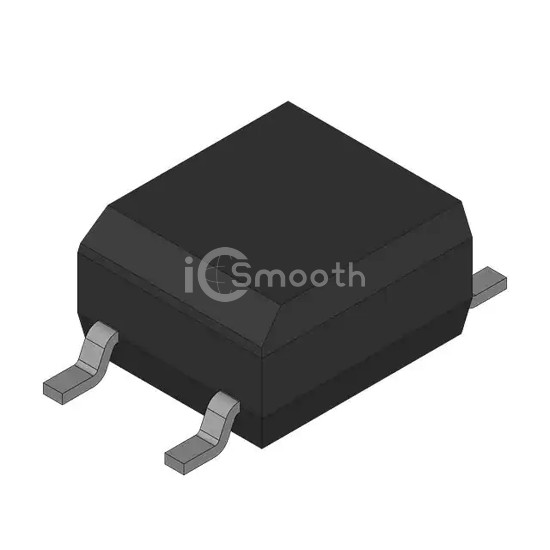

FODM3053R1 - Fairchild Semiconductor - Optoisolators - Triac, SCR Output
REF: FODM3053R1 Fairchild Semiconductor
FODM3053R1

Fairchild Semiconductor

TRIAC OUTPUT OPTOCOUPLER

FODM3053R1 is a Optoisolators - Triac, SCR Output manufactured by Fairchild Semiconductor. TRIAC OUTPUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 16,726

Tiered Pricing USD
1,000+ $0.6094 —
2,000+ $0.5778 -5%
3,000+ $0.5620 -8%
5,000+ $0.5445 -11%
7,000+ $0.5343 -12%
10,000+ $0.5245 -14% BEST

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation3750Vrms
Voltage - Off State600 V
Static dV/dt (Min)1kV/µs
Current - LED Trigger (Ift) (Max)5mA
Current - On State (It (RMS)) (Max)70 mA
Current - Hold (Ih)300µA (Typ)
Turn On Time-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)60 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
Approval AgencyBSI, CSA, UL
