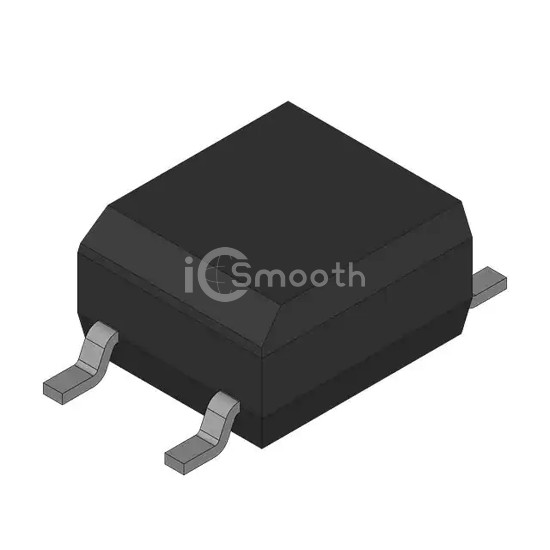

Name: FODM3023NF098
Brand: Fairchild Semiconductor
SKU: FODM3023NF098
Availability: InStock

REF: FODM3023NF098 Fairchild Semiconductor

FODM3023NF098

OPTOISO 3750VRMS TRIAC 1CH 4SMD

FODM3023NF098 is a Optoisolators - Triac, SCR Output manufactured by Fairchild Semiconductor. OPTOISO 3750VRMS TRIAC 1CH 4SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,003

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	3750Vrms
Voltage - Off State	400 V
Static dV/dt (Min)	10V/µs (Typ)
Current - LED Trigger (Ift) (Max)	5mA
Current - On State (It (RMS)) (Max)	70 mA

Current - Hold (Ih)	300µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
Approval Agency	cUR, UR
