Name: FODM121DR1V
Brand: Fairchild Semiconductor
SKU: FODM121DR1V
Availability: InStock

REF: FODM121DR1V Fairchild Semiconductor

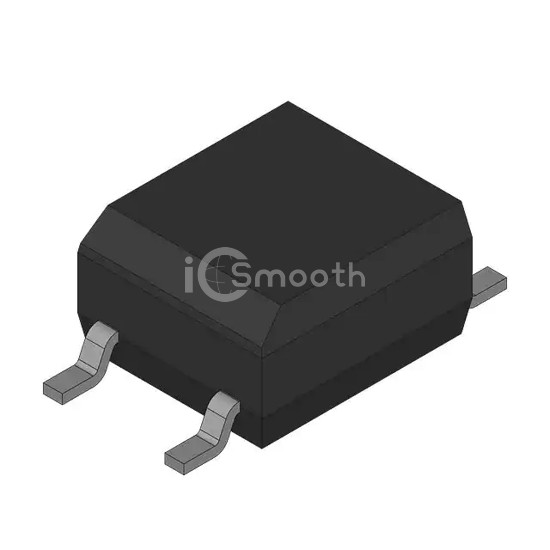

FODM121DR1V

TRANSISTOR OUTPUT OPTOCOUPLER

FODM121DR1V is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.3V (Max), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,617

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.3V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
