Name: FOD817C
Brand: Fairchild Semiconductor
SKU: FOD817C
Price: 0.35 USD
Availability: InStock

REF: FOD817C Fairchild Semiconductor

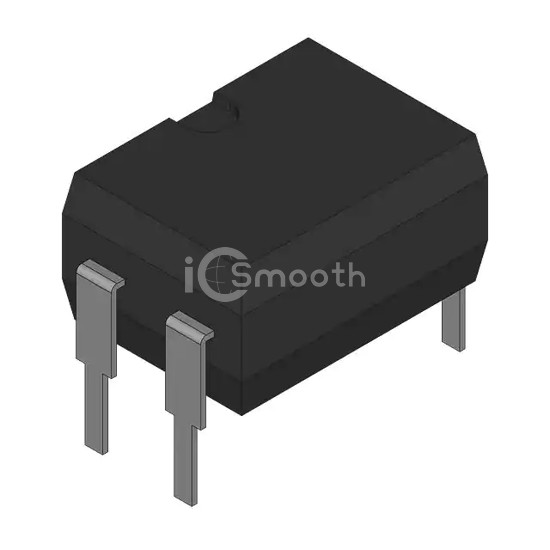

FOD817C

TRANSISTOR OUTPUT OPTOCOUPLER, 5

FOD817C is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER, 5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 9,101

Tiered Pricing USD

1+ $0.3500 —

10+ $0.2370 -32%

100+ $0.1679 -52%

500+ $0.1364 -61%

1,000+ $0.1261 -64%

2,000+ $0.1172 -67%

5,000+ $0.1075 -69%

10,000+ $0.1015 -71%

25,000+ $0.0949 -73% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
