Name: FOD815W
Brand: Fairchild Semiconductor
SKU: FOD815W
Availability: InStock

REF: FOD815W Fairchild Semiconductor

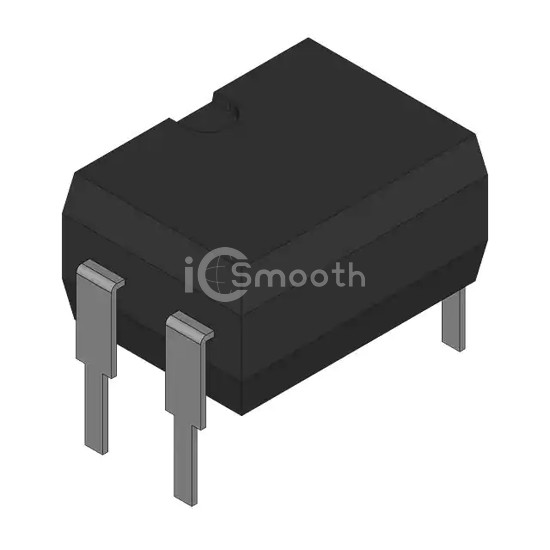

FOD815W

TRANSISTOR OUTPUT OPTOCOUPLER

FOD815W is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. TRANSISTOR OUTPUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 105°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 8,190

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	7500% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Operating Temperature	-30°C ~ 105°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
