FOD3120TSV

In Stock: 7,224

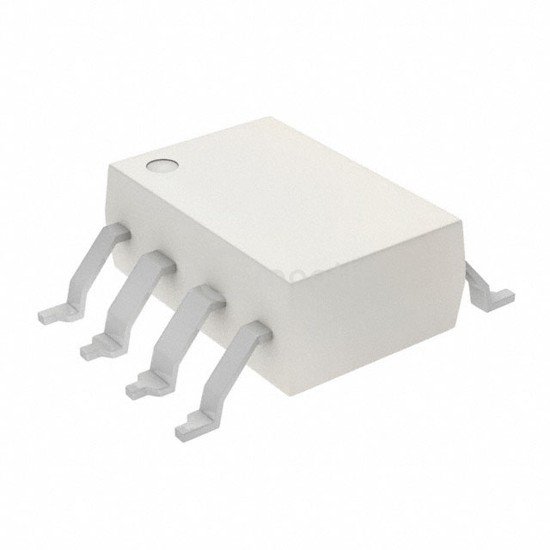

FOD3120TSV - Fairchild Semiconductor - Isolators - Gate Drivers
REF: FOD3120TSV Fairchild Semiconductor
FOD3120TSV

Fairchild Semiconductor

FET OUTPUT OPTOCOUPLER

FOD3120TSV is a Isolators - Gate Drivers manufactured by Fairchild Semiconductor. FET OUTPUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,224

Tiered Pricing USD
1+ $2.0600 —
50+ $1.2130 -41%
100+ $1.1267 -45%
500+ $0.9730 -53%
1,000+ $0.9229 -55%
2,000+ $0.8805 -57%
5,000+ $0.8342 -60%
10,000+ $0.8053 -61% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)60ns, 60ns
Current - Output High, Low2A, 2A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
Approval AgencyIEC, UL
