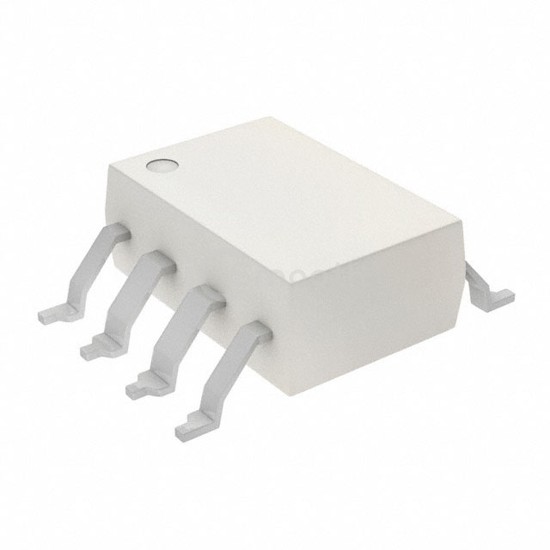

FOD3120TS - Fairchild Semiconductor - Isolators - Gate Drivers
REF: FOD3120TS Fairchild Semiconductor
FOD3120TS

Fairchild Semiconductor

FET OUTPUT OPTOCOUPLER

FOD3120TS is a Isolators - Gate Drivers manufactured by Fairchild Semiconductor. FET OUTPUT OPTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,715

Specifications

18 parameters
Product StatusObsolete
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)60ns, 60ns
Current - Output High, Low2A, 2A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
Approval AgencyUL
