FMG2G75US120

In Stock: 45

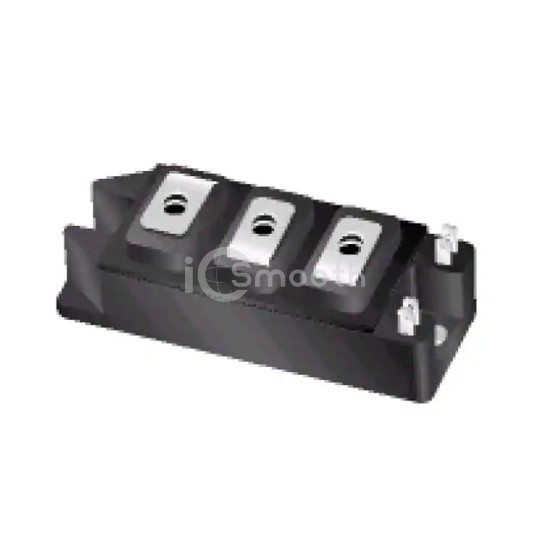

FMG2G75US120 - Fairchild Semiconductor - Transistors - IGBTs - Modules
REF: FMG2G75US120 Fairchild Semiconductor
FMG2G75US120

Fairchild Semiconductor

IGBT, 75A, 1200V, N-CHANNEL

FMG2G75US120 is a Transistors - IGBTs - Modules manufactured by Fairchild Semiconductor. IGBT, 75A, 1200V, N-CHANNEL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7PM-GA, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 45

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1.2 V
Current - Collector (Ic) (Max)75 A
Power - Max445 W
Vce(on) (Max) @ Vge, Ic3V @ 15V, 75A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / Case7PM-GA
Supplier Device Package7PM-GA
