FMG1G75US60L

In Stock: 52

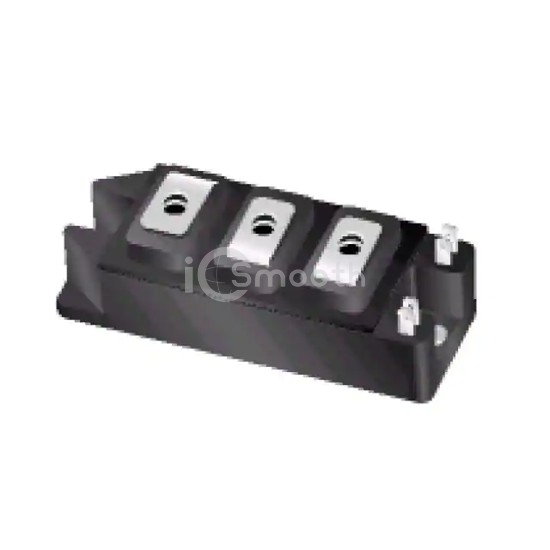

FMG1G75US60L - Fairchild Semiconductor - Transistors - IGBTs - Modules
REF: FMG1G75US60L Fairchild Semiconductor
FMG1G75US60L

Fairchild Semiconductor

IGBT, 75A, 600V, N-CHANNEL

FMG1G75US60L is a Transistors - IGBTs - Modules manufactured by Fairchild Semiconductor. IGBT, 75A, 600V, N-CHANNEL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7PM-GA, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 52

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)75 A
Power - Max310 W
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce7.056 nF @ 30 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / Case7PM-GA
Supplier Device Package7PM-GA
