FMG1G150US60H

In Stock: 18

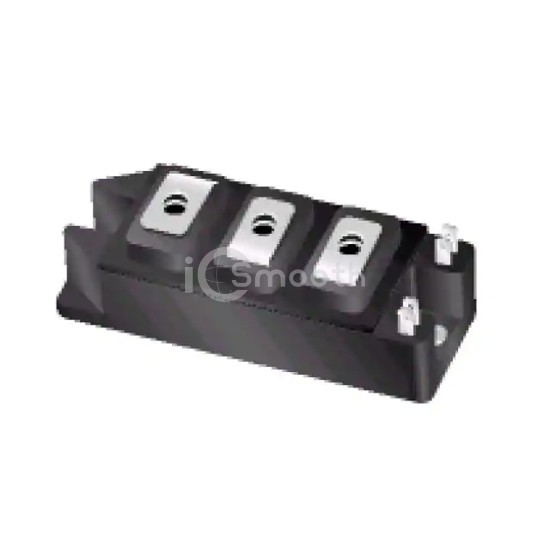

FMG1G150US60H - Fairchild Semiconductor - Transistors - IGBTs - Modules
REF: FMG1G150US60H Fairchild Semiconductor
FMG1G150US60H

Fairchild Semiconductor

IGBT, 150A, 600V, N-CHANNEL

FMG1G150US60H is a Transistors - IGBTs - Modules manufactured by Fairchild Semiconductor. IGBT, 150A, 600V, N-CHANNEL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 18

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)150 A
Power - Max595 W
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 150A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device Package-
