FJY4007R

In Stock: 5,306

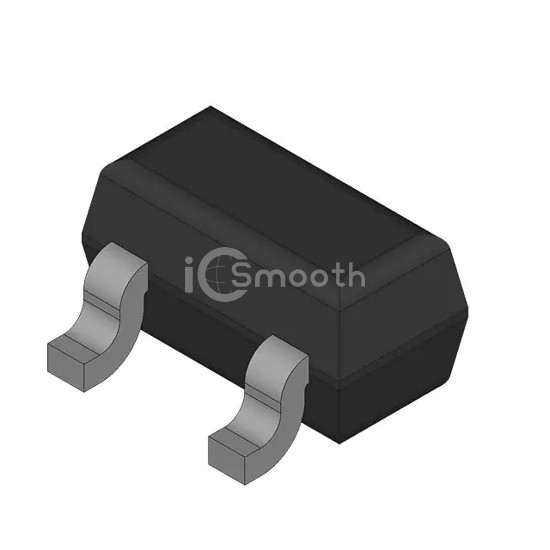

FJY4007R - Fairchild Semiconductor - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: FJY4007R Fairchild Semiconductor
FJY4007R

Fairchild Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR

FJY4007R is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Fairchild Semiconductor. SMALL SIGNAL BIPOLAR TRANSISTOR. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 5,306

Specifications

14 parameters
Product StatusObsolete
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)22 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)100nA (ICBO)
Frequency - Transition200 MHz
Power - Max200 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSOT-523F
