Name: FJX4004RTF
Brand: Fairchild Semiconductor
SKU: FJX4004RTF
Availability: InStock

REF: FJX4004RTF Fairchild Semiconductor

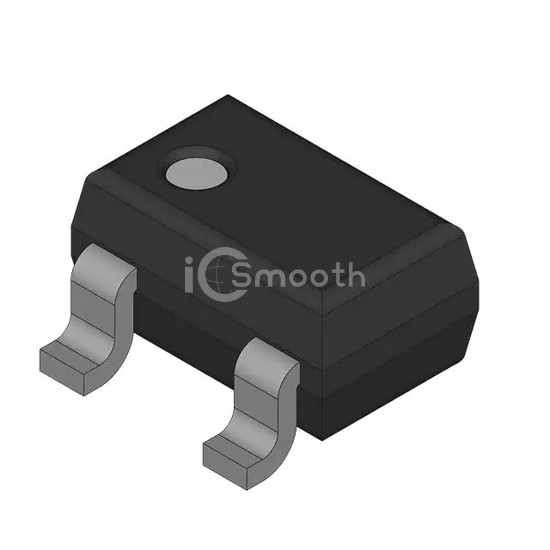

FJX4004RTF

SMALL SIGNAL BIPOLAR TRANSISTOR

FJX4004RTF is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Fairchild Semiconductor. SMALL SIGNAL BIPOLAR TRANSISTOR. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 9,173

Specifications

14 parameters

Product Status	Obsolete
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	47 kOhms
Resistor - Emitter Base (R2)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V

Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	100nA (ICBO)
Frequency - Transition	200 MHz
Power - Max	200 mW
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70-3 (SOT323)
