Name: FJX3014RTF
Brand: Fairchild Semiconductor
SKU: FJX3014RTF
Availability: InStock

REF: FJX3014RTF Fairchild Semiconductor

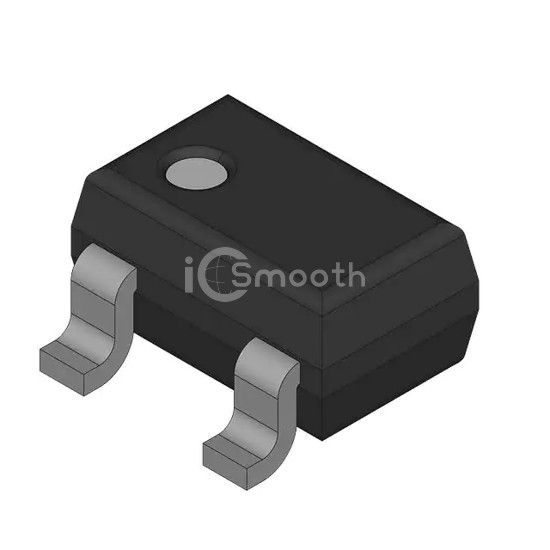

FJX3014RTF

0.1A, 50V, NPN

FJX3014RTF is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Fairchild Semiconductor. 0.1A, 50V, NPN. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 8,261

Specifications

14 parameters

Product Status	Active
Transistor Type	NPN - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	4.7 kOhms
Resistor - Emitter Base (R2)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V

Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	100nA (ICBO)
Frequency - Transition	250 MHz
Power - Max	200 mW
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70 (SOT323)
