FJX3013RTF

In Stock: 2,148

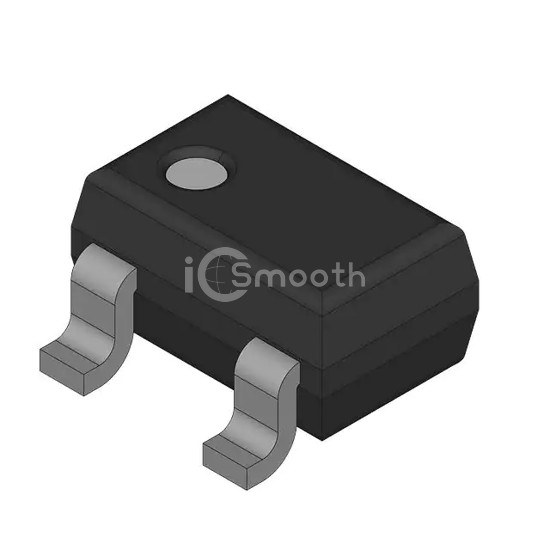

FJX3013RTF - Fairchild Semiconductor - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: FJX3013RTF Fairchild Semiconductor
FJX3013RTF

Fairchild Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR

FJX3013RTF is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Fairchild Semiconductor. SMALL SIGNAL BIPOLAR TRANSISTOR. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 2,148

Specifications

14 parameters
Product StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)2.2 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)100nA (ICBO)
Frequency - Transition250 MHz
Power - Max200 mW
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSC-70-3 (SOT323)
